LK-1201AE

Inquiry

Product ID: LK-1201AE

  • Name type :LK-1201AE Bolt Lock
  • Input voltage :12VDC
  • Standby current:380mA
  • Start current :900mA
  • Body:205L×32W×43H(mm)
  • Strike plate :104L×32(25)W×35H(mm)
Assembly
PDF

Function:

Top quality coil isolation for high voltage protection.

Accessories:

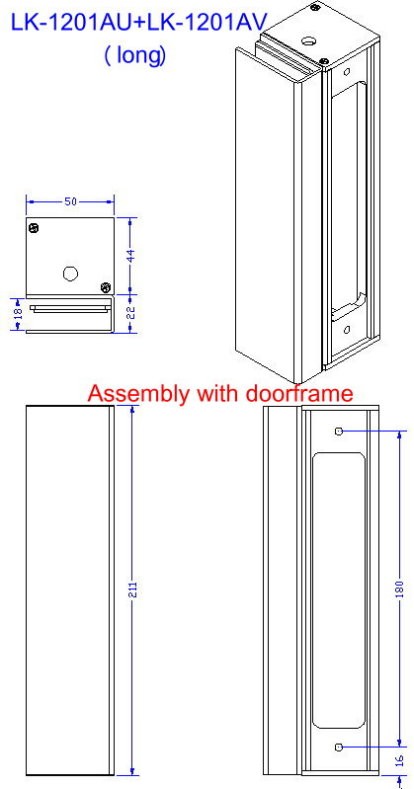

LK-1201AU (long)

Material: Stainless steel
Door Thickness: 8~13mm.
Must match the LK-1201AV use.
(Selects and purchases accroding to the service condition.)

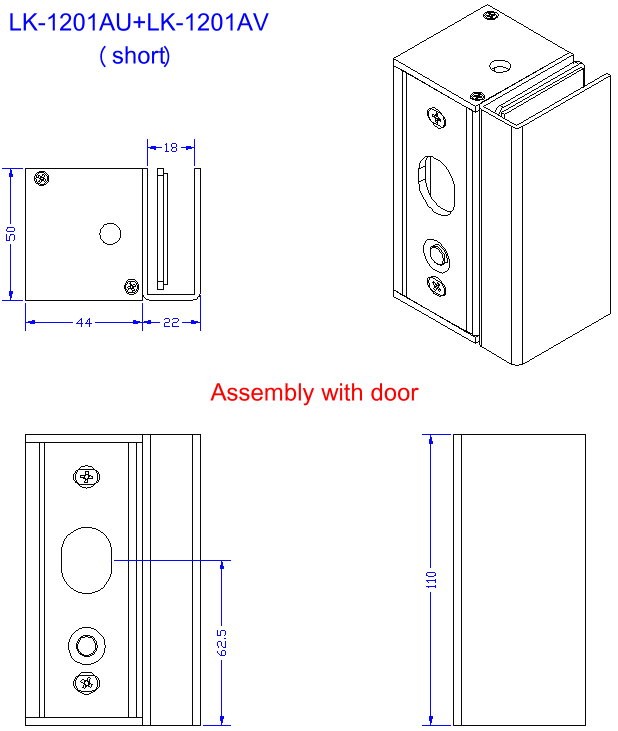

LK-1201AU (short)

Material: Stainless steel
Door Thickness: 8~13mm.
Must match the LK-1201AV use.
(Selects and purchases accroding to the service condition.)

LK-1201AV (long)

Material: Aluminum
Must match the LK-1201AU/LK-1201A/B/AE use.
(Selects and purchases accroding to the service condition.)

LK-1201AV (short)

Material: Aluminum
Must match the LK-1201AU/LK-1201A/B/AE use.
(Selects and purchases accroding to the service condition.)
