EM-500 / EM-501 / EM-502 / EM-500R
Product ID: EM-500 (1200LBS)
- Name type :EM-500/EM-501/EM-502/EM-500R
- Holding force(Max) :1200LBS(540KG)
- Voltage:12VDC~24VDC
- Current:12VDC-500mA, 24VDC-250mA
- Body:266L×73.5W×40H(mm)
- Strike plate :185L×61W×16H(mm)
- Material:Aluminum
Function:
| EM-500 | EM-501 | EM-502 | EM-500R | |
| Door monitoring output | YES | YES | NO | YES |
| LED indicator | YES | YES | NO | YES |
| Delay time | NO | YES | NO | 10~20 sec |
Accessories:

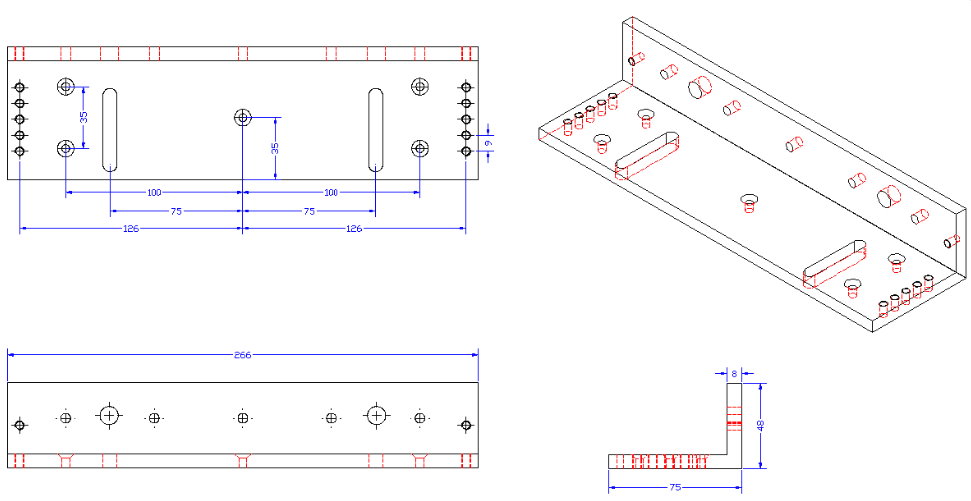

EM-500 L-Bracket
Material: Aluminum
(Selects and purchases accroding to the service condition.)

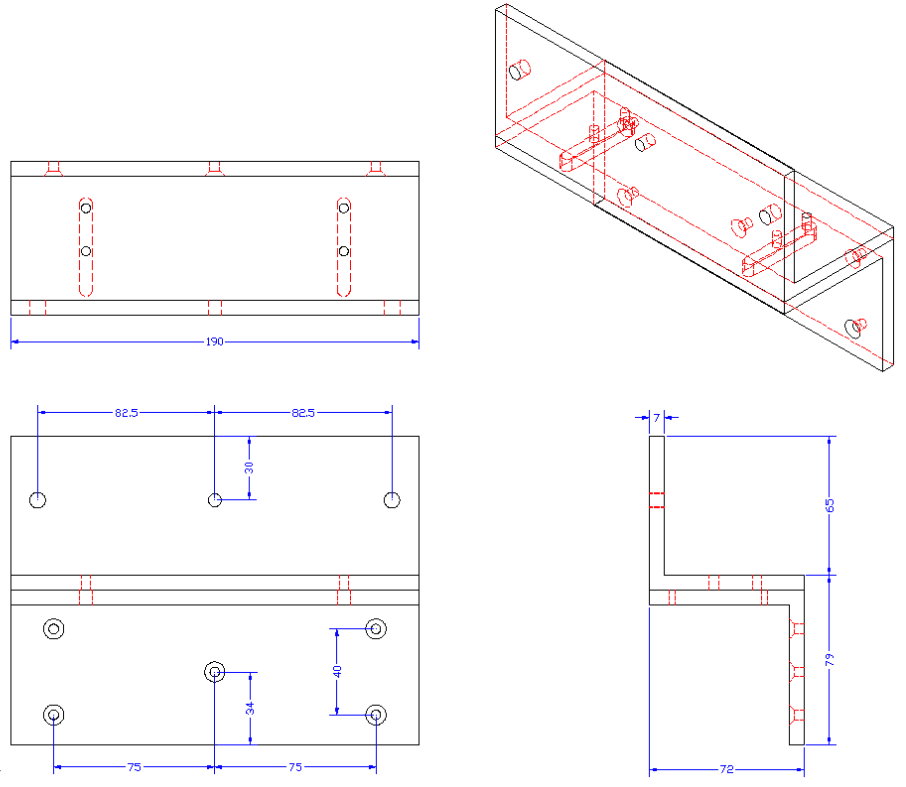

EM-500 Z-Bracket
Material: Aluminum
(Selects and purchases accroding to the service condition.)

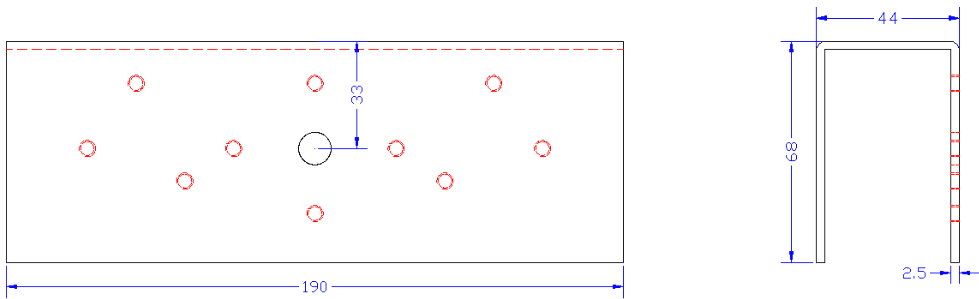

EM-500E
Material: Aluminum
(Selects and purchases accroding to the service condition.)
