Product ID: GL-270 (600LBS)

• Name type :GL-270/GL-271
• Holding force(Max) :600LBS(270KG)
• Voltage:12VDC~24VDC
• Current:12VDC-500mA, 24VDC-250mA
• Body:200L×40W×26H(mm)
• Strike plate :185L×38W×12H(mm)
• Material:Stainless
• Used for:IN/Out swing door

Function:

Accessories:

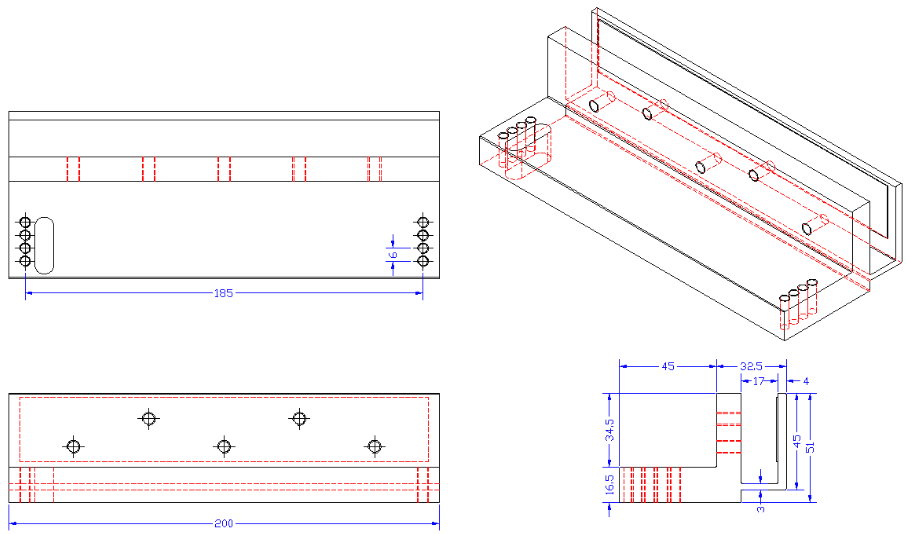

GL-270 Z-Bracket

Material: Stainless steel
(Selects and purchases accroding to the service condition.)

Assembly

GL-270U

Material: Aluminum
Must match EM-250U.
(Selects and purchases accroding to the service condition.)

Dimension Assembly
