GL-600F / GL-601F

Inquiry

Product ID: GL-600F (1300LBS)

  • Name type :GL-600F/GL-601F
  • Holding force(Max) :1300LBS(589KG)
  • Voltage:12VDC~24VDC
  • Current:12VDC-500mA, 24VDC-250mA
  • Body:224L×63W×42H(mm)
  • Strike plate :185L×61W×16H(mm)
  • Material:Stainless steel
  • Used for :Out swing door
Assembly
PDF

Function:

  GL-600F GL-601F
Door mointoring output YES NO

Accessories:

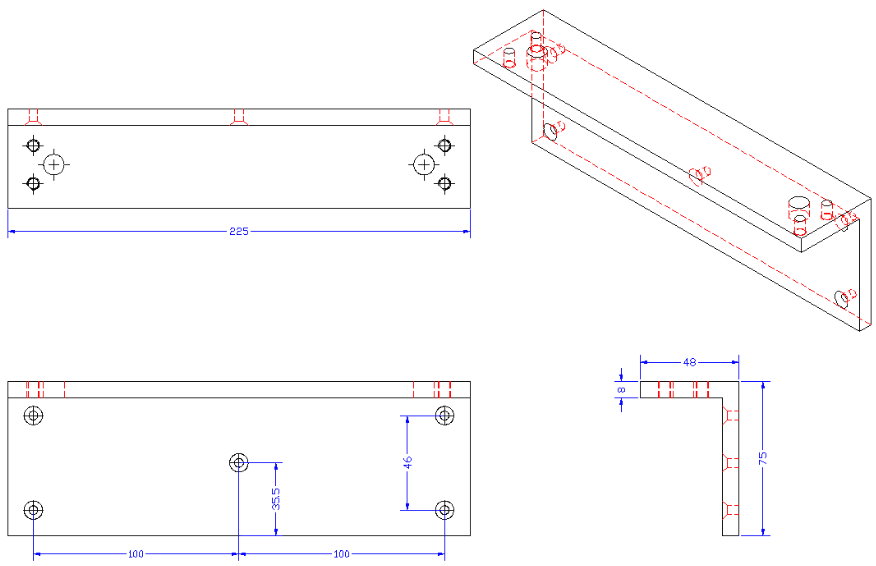

GL-600F L-Bracket

Material: Aluminum
(Selects and purchases accroding to the service condition.)

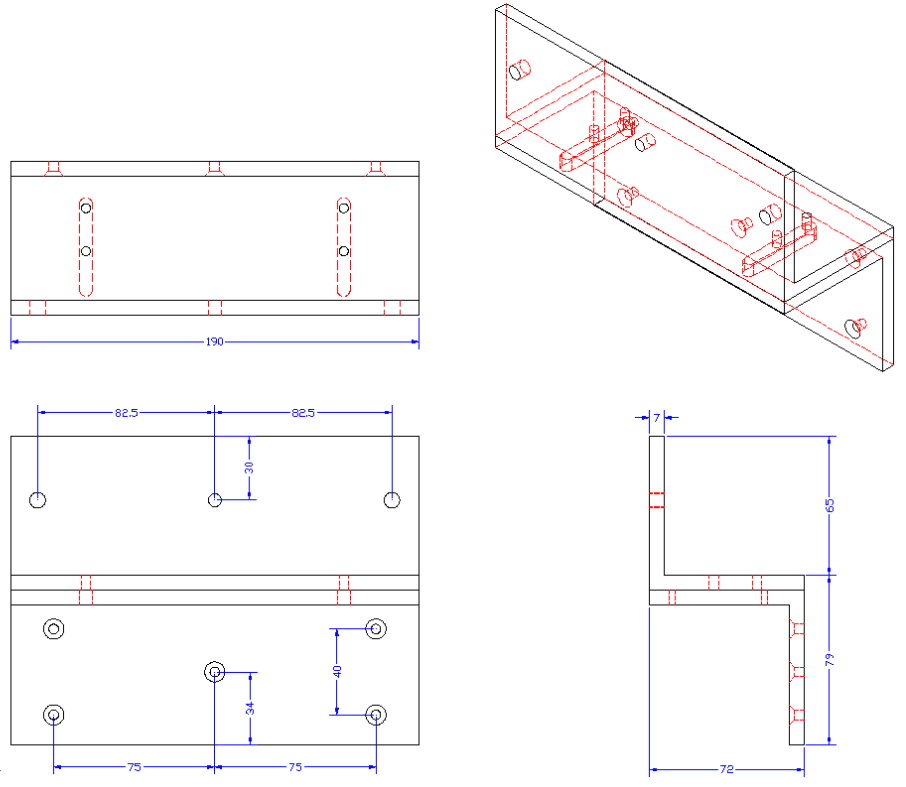

GL-600F Z-Bracket

Material: Aluminum
(Selects and purchases accroding to the service condition.)
