EM-150 / EM-151

Inquiry

Product ID: EM-150 (300LBS)

  • Name type: EM-150/EM-151
  • Holding force(Max): 300LBS(130KG)
  • Voltage: 12VDC~24VDC
  • Current: 12VDC-370mA, 24VDC-185mA
  • Body: 166L×38.5W×21H(mm)
  • Strike plate: 130L×32W×10H(mm)
  • Material: Aluminum
Assembly
PDF

Function:

  EM-150 EM-151
Door monitoring output YES NO

Accessories:

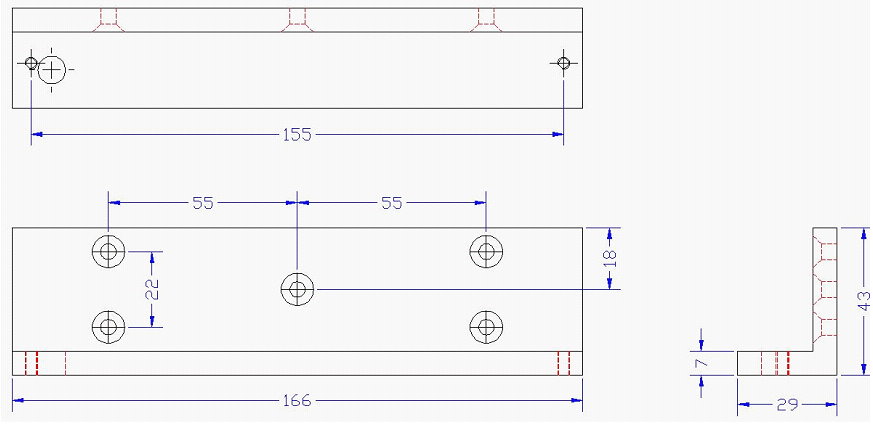

EM-150 L-Bracket

Material: Aluminum
(Selects and purchases accroding to the service condition.)

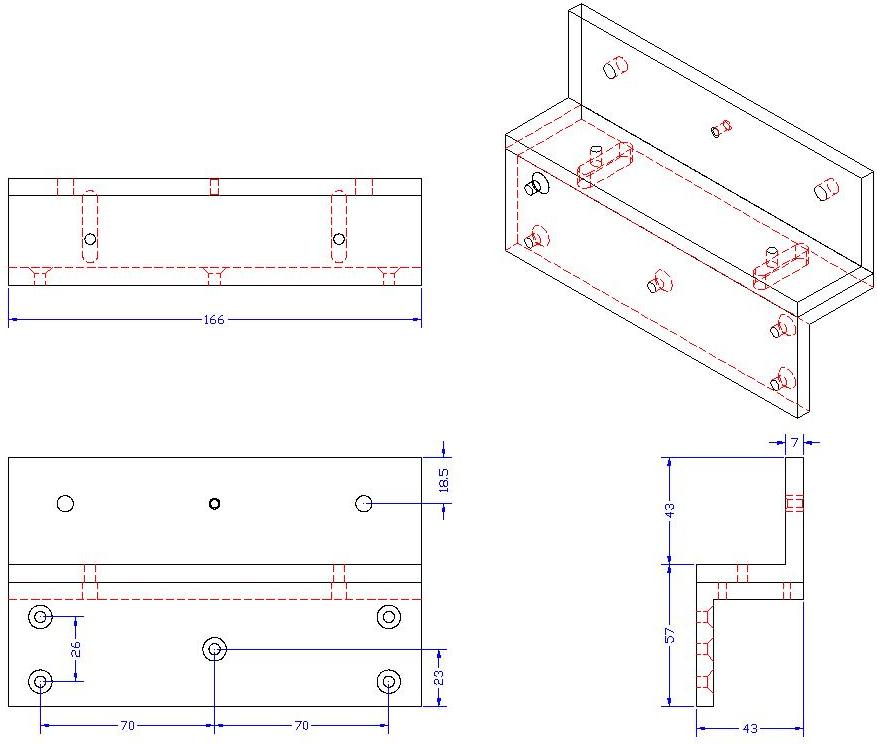

EM-150 Z-Bracket

Material: Aluminum
(Selects and purchases accroding to the service condition.)

EM-150U

Material: Aluminum
(Selects and purchases accroding to the service condition.)
