GL-180

Inquiry

Product ID: GL-180 (400LBS)

  • Name type :GL-180
  • Holding force(Max) :400LBS(180KG)
  • Voltage:12VDC~24VDC
  • Current:12VDC-370mA, 24VDC-185mA
  • Body:164L×35W×26H(mm)
  • Strike plate :130L×32W×10H(mm)
  • Material:Stainless steel
  • Used for :In swing door
Assembly
PDF

Accessories:

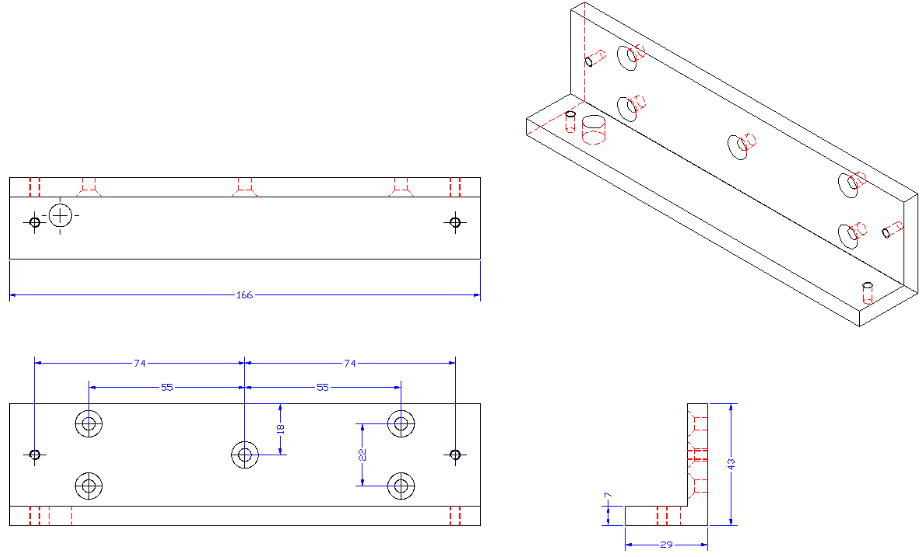

GL-180 L-Bracket

Material: Aluminum
(Selects and purchases accroding to the service condition.)

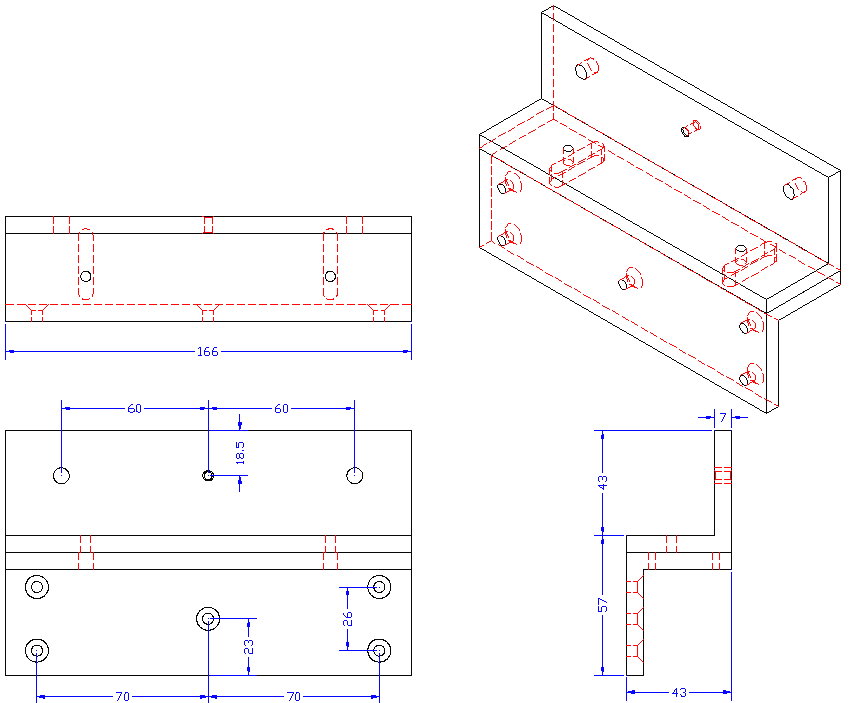

GL-180 Z-Bracket

Material: Aluminum
(Selects and purchases accroding to the service condition.)
